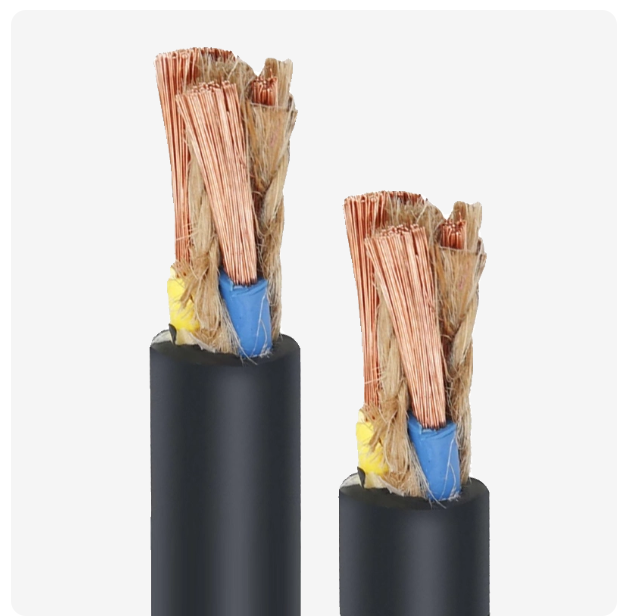

YQW 輕型橡套軟電纜

YQW Lightweight Rubber Sheathed Flexible Cable

YQW 是一種適用于戶外及輕度油污環境的移動用軟電纜，主要用于各類便攜式電器、電動工具及小型設備的電源連接。

YQW is a flexible cable designed for mobile use in outdoor and light oil-contaminated environments, mainly used for power connection of portable appliances, power tools, and small equipment.

產品簡介

Product Overview

YQW 屬于輕型橡套電纜系列，其中字母“W”表示戶外型。它在普通輕型橡套電纜的基礎上，采用了耐候性更強的護套材料，具備抗紫外線、耐油、耐寒等特性，適合在戶外露天或接觸油污的場合長期使用。

YQW belongs to the lightweight rubber sheathed cable series, where the letter "W" stands for Outdoor type. Compared with standard lightweight rubber cables, it uses a weather-resistant sheath material with UV resistance, oil resistance, and cold resistance, making it suitable for long-term use in open-air or oil-exposed environments.

結構組成

Structure & Construction

導體：多股細銅絲絞合而成，柔軟性好，適合頻繁彎曲和移動使用。
Conductor: Stranded fine copper wires offering high flexibility, suitable for frequent bending and mobile applications.
絕緣層：橡膠混合物包裹，提供可靠的電氣絕緣保護。
Insulation: Rubber compound insulation providing reliable electrical protection.
護套層：耐候型橡膠護套，增強耐磨、耐油、耐日曬和抗老化能力。
Sheath: Weather-resistant rubber sheath enhancing abrasion, oil, sunlight, and aging resistance.

常見派生型號包括：

Common variants include:

YQ：普通輕型橡套電纜（無耐候要求）；
YQ: Standard lightweight rubber sheathed cable (non-weatherproof);
YZ / YZW：中型橡套電纜及其戶外型，截面和承載能力更大。
YZ / YZW: Medium-duty rubber sheathed cable and its outdoor type, with larger cross-section and higher current capacity.

主要特點

Key Features

柔軟耐彎：導體采用多股細絲結構，彎曲半徑小，適合手持工具和移動設備頻繁拖拽。
Flexible & Bendable: Multi-strand conductor design allows small bending radius, ideal for handheld tools and frequently moved equipment.
耐候性強：護套可抵御紫外線、臭氧和氣候變化，適合戶外露天敷設。
Strong Weather Resistance: The sheath resists UV rays, ozone, and climate variations, suitable for outdoor open-air installation.
耐油耐污：在輕度油污環境中不易老化，適合車間、工地等場合。
Oil & Contamination Resistant: Resists aging in light oil environments, suitable for workshops and construction sites.
耐寒性能：在較低溫度下仍能保持柔韌性，不易變硬或開裂。
Cold Resistance: Remains flexible at low temperatures without hardening or cracking.

典型參數（參考值）

Typical Parameters (Reference Values)

額定電壓：300/300V 或 450/750V
Rated Voltage: 300/300V or 450/750V
長期工作溫度：≤ 65℃
Long-term Working Temperature: ≤ 65℃
常用芯數：2 芯、3 芯
Common Cores: 2-core, 3-core
常用截面：0.3 mm2、0.5 mm2、0.75 mm2、1.0 mm2、1.5 mm2
Common Cross-sections: 0.3 mm2, 0.5 mm2, 0.75 mm2, 1.0 mm2, 1.5 mm2
***低使用溫度：約 -35℃（固定敷設）
Minimum Operating Temperature: approx. -35℃ (fixed installation)

應用領域

Application Fields

家用電器：吸塵器、電熨斗、電風扇等需要頻繁移動的小型家電。
Household Appliances: Portable appliances requiring frequent movement, such as vacuum cleaners, electric irons, and fans.
電動工具：手電鉆、角磨機、曲線鋸等戶外或工地使用的便攜式工具。
Power Tools: Portable tools used outdoors or on construction sites, such as hand drills, angle grinders, and jigsaws.
儀器儀表：萬用表、檢測設備等便攜儀器的電源線。
Instruments & Meters: Power cords for portable devices such as multimeters and testing equipment.
戶外設備：臨時舞臺燈光、戶外廣告燈箱、小型施工機具的電源連接。
Outdoor Equipment: Power connections for temporary stage lighting, outdoor advertising light boxes, and small construction machinery.

使用與選型要點

Usage & Selection Guidelines

選型建議：
Selection Suggestions:

在戶外或油污環境中，應優先選用帶“W”的 YQW，普通 YQ 不具備耐候性；
In outdoor or oily environments, prioritize YQW with "W"; standard YQ lacks weather resistance.
負載電流較大時，可考慮截面更大的 YZW 中型戶外電纜。
For higher load currents, consider the medium-duty YZW outdoor cable with larger cross-section.

敷設注意：避免電纜被尖銳物體劃傷或被重物長期碾壓，防止護套破損。
Installation Note: Avoid sharp objects or heavy rolling loads that may cut or crush the sheath.
存放建議：閑置時應盤繞整齊，存放在干燥、通風、避免陽光直射的場所。
Storage Advice: When not in use, coil neatly and store in a dry, ventilated place away from direct sunlight.
