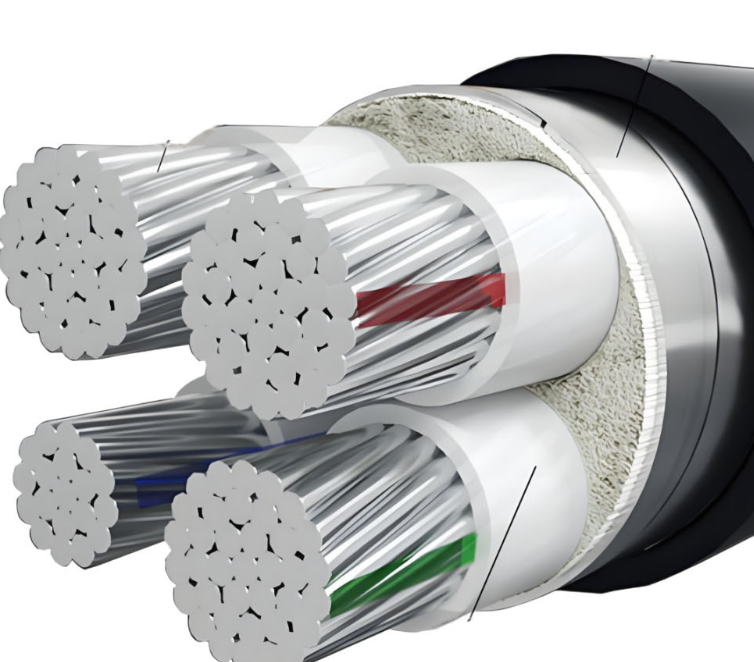

產品名稱：ZC-YJLHV Flame Retardant Aluminum Alloy Power Cable
瀏覽：
添加時間：2026-05-19 08:49:50
推薦度：

介紹：

ZC-YJLHV 鋁合金電力電纜適用于額定電壓 0.6/1kV 及以下的輸配電線路，采用稀土高鐵鋁合金導體與交聯聚乙烯（XLPE）絕緣結構，在滿足電氣傳輸功能的同時，兼顧材料成本與施工便利性。

ZC-YJLHV Aluminum Alloy Core XLPE Insulated PVC Sheathed Flame Retardant Power Cable Product Description

The ZC-YJLHV aluminum alloy power cable is designed for power transmission and distribution lines rated at 0.6/1kV and below. It utilizes a rare-earth high-iron aluminum alloy conductor and cross-linked polyethylene (XLPE) insulation structure, balancing electrical transmission functions with material costs and installation convenience.

一、核心規格與技術參數 (Core Specifications & Technical Parameters)

參數項目 (Parameter)	技術指標 (Specification)
型號 (Model)	ZC-YJLHV
額定電壓 (Rated Voltage)	0.6/1 kV
導體材質 (Conductor)	稀土高鐵鋁合金 (Rare-earth high-iron aluminum alloy)
絕緣材料 (Insulation)	交聯聚乙烯 (XLPE)
護套材料 (Sheath)	阻燃聚氯乙烯 (Flame Retardant PVC)
阻燃等級 (Flame Retardant Class)	C類 (Class C)
長期工作溫度 (Operating Temp.)	90℃ (長期運行)
短路耐受溫度 (Short-circuit Temp.)	***高 250℃ (持續時間 ≤ 5s)
***小彎曲半徑 (Min. Bending Radius)	建議 ≥ 7 倍電纜外徑

(注：產品規格涵蓋 10mm2 至 400mm2 等截面積，支持多芯結構定制。)

1. Core Specifications and Technical Parameters

Parameter	Specification
Model	ZC-YJLHV
Rated Voltage	0.6/1 kV
Conductor Material	Rare-earth high-iron aluminum alloy
Insulation Material	Cross-linked Polyethylene (XLPE)
Sheath Material	Flame Retardant Polyvinyl Chloride (PVC)
Flame Retardant Class	Class C
Long-term Operating Temperature	90℃
Short-circuit Withstand Temperature	Up to 250℃ (Duration ≤ 5s)
Minimum Bending Radius	Recommended ≥ 7× cable outer diameter

Note: Product specifications cover cross-sectional areas ranging from 10mm2 to 400mm2, with support for customized multi-core structures.

二、產品特性 (Product Features)

1. 電氣與機械性能

相較于純鋁導體，該合金電纜通過成分優化與熱處理，抗蠕變性能有所提升，可減小因冷熱循環導致的連接松動風險；其斷裂伸長率與柔韌性指標符合相關標準要求，便于現場敷設操作。

1. Electrical and Mechanical Properties

Compared with pure aluminum conductors, this alloy cable demonstrates improved creep resistance through compositional optimization and heat treatment, mitigating the risk of connection loosening caused by thermal cycling. Its elongation at break and flexibility meet relevant standard requirements, facilitating on-site installation operations.

2. 經濟性與施工適應性

在相同載流量條件下，鋁合金導體比重約為銅導體的 30%。使用該產品可減輕電纜本體重量，對橋梁承重要求及運輸、安裝環節的人力投入有一定優化作用。

2. Economy and Installation Adaptability

Under equivalent current-carrying capacity conditions, the specific gravity of the aluminum alloy conductor is approximately 30% that of copper conductors. Utilizing this product reduces the weight of the cable itself, offering optimization for structural load-bearing requirements and labor input during transportation and installation.

3. 阻燃特性

產品符合 C 級阻燃標準，在規定的燃燒試驗條件下可抑制火焰蔓延，撤去火源后具備自熄特性，燃燒時產生的煙密度與腐蝕性氣體釋放量符合標準要求。

3. Flame Retardant Characteristics

The product complies with Class C flame retardant standards. Under specified combustion test conditions, it inhibits flame propagation and exhibits self-extinguishing characteristics upon removal of the ignition source. The smoke density and corrosive gas emissions during combustion conform to standard requirements.

4. 耐候與抗腐蝕

鋁合金導體表面可形成致密氧化膜，對一般環境因素具備耐受能力。配合 XLPE 絕緣層與 PVC 護套，可在常規室內、隧道、橋架等環境中穩定運行。

4. Weather Resistance and Corrosion Resistance

A dense oxide film forms on the surface of the aluminum alloy conductor, providing tolerance to general environmental factors. Combined with XLPE insulation and PVC sheathing, the cable operates stably in conventional indoor, tunnel, and cable tray environments.

三、典型應用場景 (Typical Application Scenarios)

該產品適用于對成本與阻燃性能有一定要求的場合：

民用及商業建筑：住宅小區、寫字樓、商場的輸配電主干線及分支線路。
工業設施：工廠車間、數據中心、倉儲設施的電力分配系統。
公共建筑：醫院、學校、體育場館等場所的消防供電回路及一般供電回路。
3. Typical Application Scenarios
This product is suitable for applications with specific requirements for cost and flame retardant performance:
Residential and Commercial Buildings: Main and branch power transmission and distribution lines in residential communities, office buildings, and shopping malls.
Industrial Facilities: Power distribution systems in factory workshops, data centers, and warehousing facilities.
Public Buildings: Fire protection power supply circuits and general power supply circuits in hospitals, schools, stadiums, and similar venues.
