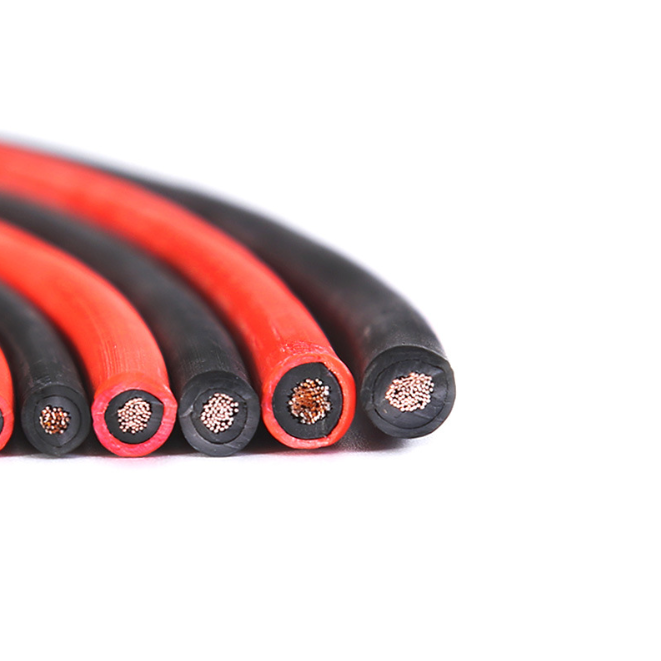

產品名稱：PV1-F 1×4mm2 Photovoltaic Cable, TüV and CE Certified
瀏覽：
添加時間：2026-05-19 08:28:58
推薦度：

介紹：

PV1-F 1×4mm2 光伏電纜適用于光伏發電系統的直流側電路連接，其設計與選型符合光伏應用場景的技術要求，可為系統電力傳輸提供穩定的線路支持。

PV1-F 1×4mm2 Solar Photovoltaic DC Cable Product Description

The PV1-F 1×4mm2 photovoltaic cable is suitable for DC-side circuit connections in solar power generation systems. Its design and specifications meet the technical requirements of photovoltaic application scenarios, providing stable line support for system power transmission.

一、核心規格與技術參數 (Technical Specifications)

參數項目 (Parameter)	技術指標 (Specification)
型號 (Model)	PV1-F 1×4mm2
導體材質 (Conductor)	鍍錫退火銅絲 (Tinned annealed copper)
導體類別 (Class)	IEC 60228 Class 5 或 Class 6 (柔性絞合結構)
絕緣材料 (Insulation)	輻照交聯低煙無鹵聚烯烴 (XLPO)
護套材料 (Sheath)	輻照交聯低煙無鹵聚烯烴 (XLPO)
額定電壓 (Rated Voltage)	AC 0.6/1kV；DC 1.8kV (***大系統電壓)
工作溫度范圍	-40℃ 至 +120℃
***小彎曲半徑	固定安裝：4×電纜外徑；移動安裝：5×電纜外徑
標準顏色 (Standard Colors)	紅色 (Red)、黑色 (Black)；支持其他顏色定制

1. Core Specifications and Technical Parameters

Parameter	Specification
Model	PV1-F 1×4mm2
Conductor Material	Tinned annealed copper
Conductor Class	IEC 60228 Class 5 or Class 6 (Flexible stranded structure)
Insulation Material	Irradiated Cross-linked Low Smoke Halogen-Free Polyolefin (XLPO)
Sheath Material	Irradiated Cross-linked Low Smoke Halogen-Free Polyolefin (XLPO)
Rated Voltage	AC 0.6/1kV; DC 1.8kV (Maximum system voltage)
Operating Temperature Range	-40℃ to +120℃
Minimum Bending Radius	Fixed installation: 4× cable outer diameter; Mobile installation: 5× cable outer diameter
Standard Colors	Red, Black; Other colors available upon request

二、產品特性 (Product Characteristics)

耐候與抗紫外線性能
采用XLPO（交聯聚烯烴）材料，經氙燈老化測試驗證，可適應戶外強日照、溫差變化較大的環境條件，有助于延長電纜在光伏系統中的使用周期。
1. Weather Resistance and UV Stability
XLPO (Cross-linked Polyolefin) material is adopted and verified by xenon arc aging tests. It adapts to environmental conditions with strong sunlight exposure and significant temperature fluctuations, supporting an extended service life within photovoltaic systems.
柔韌結構設計
導體采用Class 5/6級細銅絲絞合工藝，電纜具備******的柔韌性，便于在支架、屋頂?shù)葓?chǎng)景中布線與彎曲，可降低安裝過程中的操作難度。
2. Flexible Structural Design
The conductor utilizes a Class 5/6 fine wire stranding process, providing the cable with good flexibility. This facilitates wiring and bending on supports, roofs, and similar scenarios, reducing operational difficulty during installation.
鍍錫銅導體
導體表面鍍錫處理，可減少銅材在潮濕、鹽霧等環境下的氧化風險，提升連接的穩定性。
3. Tinned Copper Conductor
The surface of the conductor is tin-plated to reduce the risk of oxidation in humid, salt spray, and other corrosive environments, thereby enhancing connection stability.
環保與阻燃特性
材料符合無鹵低煙（Halogen-Free）要求，燃燒時煙密度較低且無腐蝕性氣體釋放，同時通過單根垂直燃燒測試（IEC 60332-1-2）。
4. Environmental and Flame Retardant Properties
The materials comply with Halogen-Free and Low Smoke requirements. They exhibit low smoke density and no release of corrosive gases when burned, and have passed the single vertical flame propagation test (IEC 60332-1-2).

三、認證情況 (Certifications)

TüV 認證：符合 2PfG 1169/08.2007 及 EN 50618 標準要求。
CE 認證：符合歐盟相關指令要求。
IEC 標準：符合 IEC 62930 光伏系統用直流電纜標準。
注：可提供相關認證文件及英文檢測報告，供清關及項目驗收使用。
3. Certification Status
TüV Certification: Complies with standards 2PfG 1169/08.2007 and EN 50618.
CE Certification: Meets relevant EU directive requirements.
IEC Standards: Conforms to IEC 62930 standard for DC cables used in photovoltaic systems.
Note: Relevant certification documents and English test reports can be provided for customs clearance and project acceptance purposes.

四、應用場景 (Applications)

光伏組件間的串聯連接；
光伏組串匯流箱至逆變器間的直流線路；
屋頂分布式光伏、光伏建筑一體化（BIPV）項目；
漂浮式光伏、農光互補等特殊場景。
4. Application Scenarios
Series connections between photovoltaic modules;
DC circuits from PV string combiner boxes to inverters;
Rooftop distributed PV and Building Integrated Photovoltaics (BIPV) projects;
Specialized scenarios such as floating photovoltaics and agricultural-photovoltaic complementarity projects.

五、包裝與服務 (Packaging & Service)

包裝方式：采用出口用包裝（木盤/紙箱），內置防潮膜，外層做防護處理，以適應長途運輸需求。
印字服務：可根據客戶需求，在外護套上印制標識、規格及長度標記。
5. Packaging & Service
Packaging Method: Export-grade packaging (wooden drums/cartons) is used, with built-in moisture-proof film and external protective treatment to withstand long-distance transportation requirements.
Printing Service: Identification, specifications, and length markings can be printed on the outer sheath according to customer requirements.
