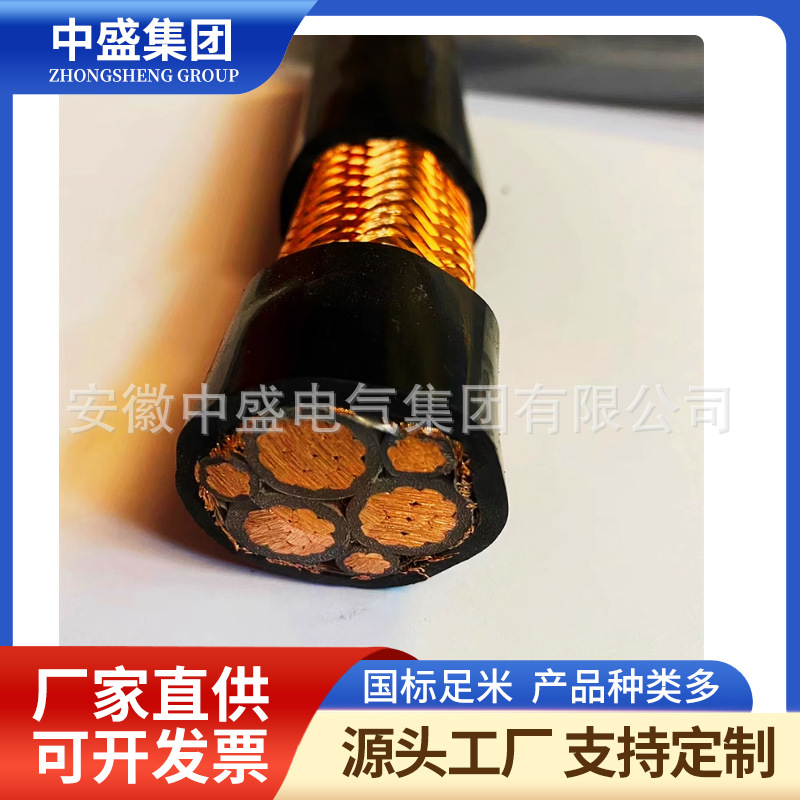

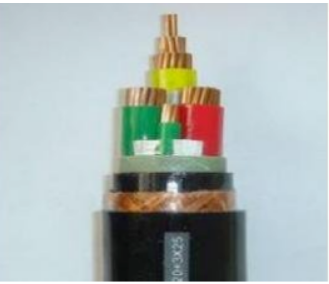

產品名稱：BPYJVP2 frequency conversion copper tape shielded cable
瀏覽：
添加時間：2025-11-27 14:22:24
推薦度：

介紹：

變頻電纜主要用于變頻電源和變頻電機之間連接用的電纜,以及額定電壓1KV及以下的輸配電線路中,作輸送電能用.尤其適用于造紙、冶金、金屬加工、礦山、鐵路和食品加工等行業。 Variable frequency cables are mainly used for connecting cables between variable frequency power supplies and variable frequency motors, as well as for transmitting electrical energy in transmission and distribution lines with a rated voltage of 1KV or below Especially suitable for industries such as papermaking, metallurgy, metal processing, mining, railways, and food processing.

產品性能

Product performance

1、 BRYJVP12R-TK、ZRBPYJVP12R-TK型設計采用符合GB/T3956-1997規定的第5類軟絞合銅導體。

1. The BRYJVP12R-TK and ZRBPYJVP12R-TK designs use Class 5 soft stranded copper conductors that comply with GB/T3956-1997 regulations.

2、交聯聚乙烯絕緣、耐溫耐候性好。

2. Cross linked polyethylene insulation has good temperature and weather resistance.

3、低傳輸阻抗，電磁兼容性好。

3. Low transmission impedance, good electromagnetic compatibility.

4、低工作電容

4. Low working capacitance

5、 ******的抗干擾和低輻射性能。

5. Good anti-interference and low radiation performance.

6、對稱的三芯電纜結構設計，具有比四芯電纜更好的傳輸性能。

6. The symmetrical three core cable structure design has better transmission performance than four core cables.

型號名稱

Model Name

BPYJVTP2-TK 銅芯交聯聚乙烯絕緣聚氯乙烯護套銅絲纏繞銅帶繞包屏蔽變頻器用回路電纜。

BPYJVTP2-TK copper core cross-linked polyethylene insulated polyvinyl chloride sheathed copper wire wrapped copper tape wrapped shielded frequency converter circuit cable.

ZRBPYJVTP2-TK銅芯交聯聚乙烯絕緣阻燃聚氯乙烯護套銅絲纏繞銅帶繞包屏蔽變頻器用回路電纜。

ZRBPYJVTP2-TK copper core cross-linked polyethylene insulated flame-retardant polyvinyl chloride sheathed copper wire wrapped copper tape wrapped shielded frequency converter circuit cable.

BPYJVP12-TK銅芯交聯聚乙烯絕緣聚氯乙烯護套銅帶繞包銅絲編織雙重屏蔽變頻器用回路電纜。

BPYJVP12-TK copper core cross-linked polyethylene insulated polyvinyl chloride sheathed copper tape wrapped copper wire braided double shielded frequency converter circuit cable.

ZRBPYJVP12-TK銅芯交聯聚乙烯絕緣阻燃聚氯乙烯護套銅帶繞包銅絲編織雙重屏蔽變頻器用回路電纜。

ZRBPYJVP12-TK copper core cross-linked polyethylene insulated flame-retardant polyvinyl chloride sheathed copper tape wrapped copper wire braided double shielded frequency converter circuit cable.

BPYJVPX12R-TK銅芯交聯聚乙烯絕緣聚氯乙烯護套銅帶繞包鍍錫銅絲編織雙重屏蔽變頻器用回路電纜。

BPYJVPX12R-TK copper core cross-linked polyethylene insulated polyvinyl chloride sheathed copper tape wrapped tin plated copper wire braided double shielded frequency converter circuit cable.

ZRBPYJVPX12R-TK銅芯交聯聚乙烯絕緣阻燃聚氯乙烯護套銅帶繞包鍍錫銅絲編織雙重屏蔽變頻器用回路電纜。

ZRBPYJVPX12R-TK copper core cross-linked polyethylene insulated flame-retardant polyvinyl chloride sheathed copper tape wrapped tin plated copper wire braided double shielded frequency converter circuit cable.

規格范圍

Specification Range

型號 芯數 標稱截面(MM)

Model, number of cores, nominal cross-section (mm)

BPYJVTP2-TK 3 1.5~240

ZRBPYJVTP2-TK 3 1.5~240

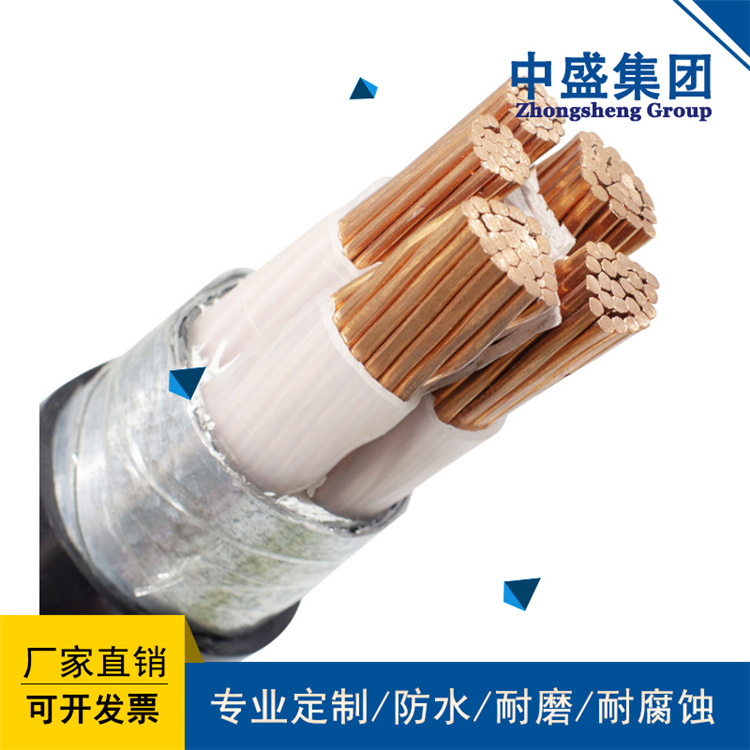

BPYJVP12R-TK 3+3 主線芯截面:2.5-240,副線芯截面:0.5-35

BPYJVP12R-TK 3+3 main core section: 2.5-240, secondary core section: 0.5-35

BPYJVPX12R-TK 3+3 主線芯截面:2.5-240,副線芯截面:0.5-35

BPYJVPX12R-TK 3+3 main core section: 2.5-240, secondary core section: 0.5-35

ZRBPYJVP12R-TK 3+3 主線芯截面:2.5-240,副線芯截面:0.5-35

ZRBPYJVP12R-TK 3+3 main core section: 2.5-240, secondary core section: 0.5-35
