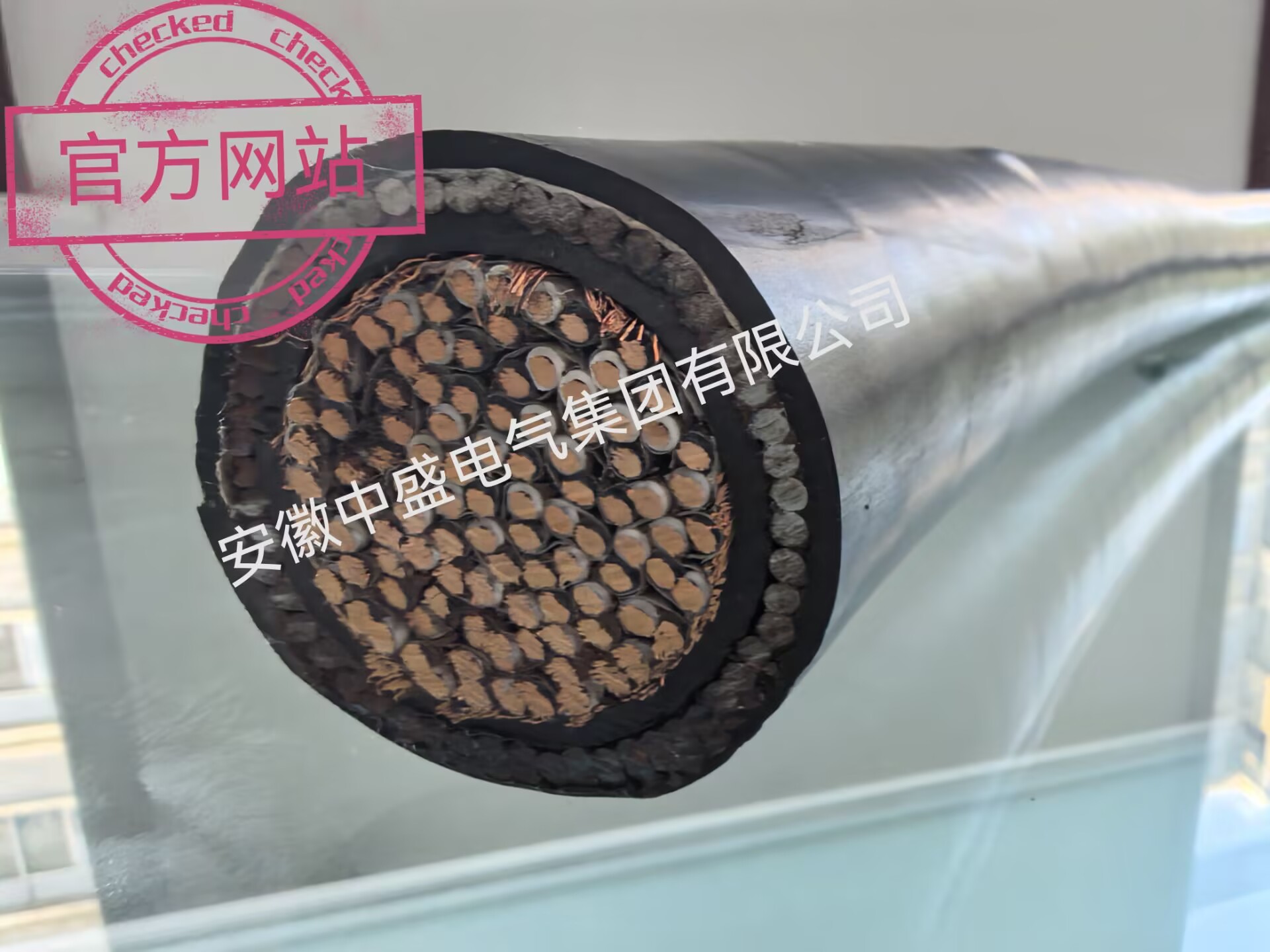

產品名稱：Steel wire armored control cableZR-KVVRP32
瀏覽：
添加時間：2025-09-18 16:00:54
推薦度：

介紹：

KVVRP32鋼絲鎧裝控制電纜產品特點及用途：本產品按GB9330《塑料絕緣控制電纜》，IEC60227《額定電壓450/750V及以下聚氯乙烯絕緣電纜》以及IEC60502《額定電壓 1-30kV擠包絕緣電力電纜及附件》等標準制造。 Characteristics and Applications of KVVRP32 Steel Wire Armored Control Cable: This product is manufactured in accordance with standards such as GB9330 "Plastic Insulated Control Cables", IEC60227 "Polyvinyl Chloride Insulated Cables with Rated Voltage of 450/750V and Below", and IEC60502 "Extruded Insulated Power Cables and Accessories with Rated Voltage of 1-30kV". ZR-KVVRP32 鋼絲鎧裝阻燃控制電纜-適用范圍聚氯乙烯絕緣聚氯乙烯護套控制電纜適用于額定電壓450/750V及以下或0.6/1kV及以下控制、信號、保護及測量系統接線之用。 ZR-KVVRP32 steel wire armored flame-retardant control cable - Scope of application PVC insulated PVC sheathed control cable is suitable for wiring control, signal, protection and measurement systems with rated voltage of 450/750V and below or 0.6/1kV and below. KVVRP32鋼絲鎧裝控制電纜-使用特性 ●工頻額定電壓Uo/U為450/750V或0.6/1kV。 ●電纜導體的允許長期zui高工作溫度為70℃。 ●電纜敷設時環境溫度應不低于0℃，若環境溫低于0℃時，應對電纜進行預熱。 ●電纜的推薦允許彎曲半徑如下：無鎧裝電纜，應不低于電纜外徑的6倍；鎧裝或銅帶屏蔽電纜，應不低于電纜外徑的12倍；屏蔽軟電纜，應不低于電纜外徑的6倍。 KVVRP32鋼絲鎧裝控制電纜-電纜的型號、名稱 KVVRP32 steel wire armored control cable - Usage characteristics ● Power frequency rated voltage Uo/U is 450/750V or 0.6/1kV. ● The maximum allowable long-term working temperature of the cable conductor is 70 ℃. When laying cables, the ambient temperature should not be lower than 0 ℃. If the ambient temperature is lower than 0 ℃, the cables should be preheated. The recommended allowable bending radius for cables is as follows: for unarmored cables, it should not be less than 6 times the outer diameter of the cable; Armored or copper tape shielded cables should not be less than 12 times the outer diameter of the cable; Shielded flexible cables should not be less than 6 times the outer diameter of the cable. KVVRP32 Steel Wire Armored Control Cable - Cable Model and Name型號名稱 Model name KVV 銅芯聚氯乙烯絕緣聚氯乙烯護套控制電纜 KVV copper core PVC insulated PVC sheathed control cable KVVP 銅芯聚氯乙烯絕緣聚氯乙烯護套編織屏蔽控制電纜 KVVP copper core PVC insulated PVC sheathed braided shielded control cable KVVP2 銅芯聚氯乙烯絕緣聚氯乙烯護套銅帶屏蔽控制電纜 KVVP2 copper core PVC insulated PVC sheathed copper tape shielded control cable KVV22 銅芯聚氯乙烯絕緣聚氯乙烯護套鋼帶鎧裝控制電纜 KVV22 copper core PVC insulated PVC sheathed steel tape armored control cable KVV32 銅芯聚氯乙烯絕緣聚氯乙烯護套細鋼絲鎧裝控制電纜 KVV32 copper core PVC insulated PVC sheathed fine steel wire armored control cable KVVR 銅芯聚氯乙烯絕緣聚氯乙烯護套控制軟電纜 KVVR copper core PVC insulated PVC sheathed control flexible cable KVVRP 銅芯聚氯乙烯絕緣聚氯乙烯護套編織屏蔽控制軟電纜 KVVRP copper core PVC insulated PVC sheathed braided shielding control flexible cable KVVP-22 銅芯聚氯乙烯絕緣聚氯乙烯護套銅絲編織屏蔽鋼帶鎧裝控制電纜 KVVP-22 copper core PVC insulated PVC sheathed copper wire braided shielding steel tape armored control cable KVVP2-22銅芯聚氯乙烯絕緣聚氯乙烯護套銅帶屏蔽鋼帶鎧裝控制軟電纜KVVP2-22 copper core PVC insulated PVC sheathed copper tape shielded steel tape armored control flexible cable
