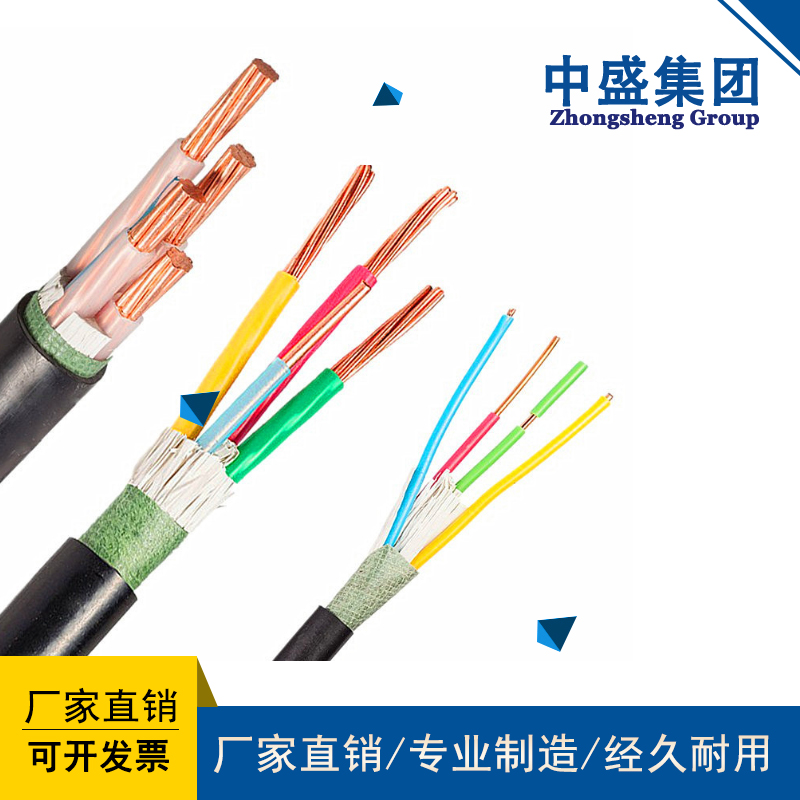

產品名稱：ATGTNS-FYS, ATGTNS22-FYS anti ant and rodent cable
瀏覽：
添加時間：2025-04-29 14:51:13
推薦度：

介紹：

本產品為特種性能電纜，適用于供城市排水、污水、道路、橋梁、地鐵、廣場及旅游景點等環境設施連接用。產品具有優異的耐低寒、高溫、酸堿、化學腐蝕、臭氧老化、紫外線輻照和防蟻鼠、防鼠害、防潮、防水、防霉、防火災（低煙低鹵或低煙無鹵）等其他特種性能。使用壽命為40-50年。

This product is a special performance cable suitable for connecting environmental facilities such as urban drainage, sewage, roads, bridges, subways, squares, and tourist attractions. The product has excellent resistance to low cold, high temperature, acid and alkali, chemical corrosion, ozone aging, ultraviolet radiation, and other special properties such as anti ant and anti rodent, anti rodent, moisture-proof, waterproof, anti mold, fire prevention (low smoke and low halogen or low smoke and halogen-free). The service life is 40-50 years.

一、產品特點及用途

1、 Product Features and Applications

本產品為特種性能電纜，適用于供城市排水、污水、道路、橋梁、地鐵、廣場及旅游景點等環境設施連接用。產品具有優異的耐低寒、高溫、酸堿、化學腐蝕、臭氧老化、紫外線輻照和防蟻鼠、防鼠害、防潮、防水、防霉、防火災(低煙低鹵或低煙無鹵)等其他特種性能。使用壽命為40-50年。

二、產品執行標準

2、 Product execution standards

Q/AT2003-12

三、使用特性

3、 Usage characteristics

1、額定電壓U0/U：0.6/1KV、450/750V、220/380V；

1. Rated voltage U0/U: 0.6/1KV, 450/750V, 220/380V;

2、使用溫度：

2. Operating temperature:

ATGTNS-FYS、ATGTNS22-FYS、ATGTNSP-FYS為-40℃-250℃；

ATGTNS-FYS, ATGTNS22-FYS, and ATGTNSP-FYS are at -40 ℃ -250 ℃;

ATGTGS、ATGTGS22、ATGTGSP、ATGTGSM為-60℃-150℃；

ATGTGS, ATGTGS22, ATGTGSP, ATGTGSM are at -60 ℃ -150 ℃;

3、最小彎曲半徑：無鎧裝層電纜不小于電纜外徑6倍，有鎧裝層電纜不小于電纜外徑8倍。

3. Minimum bending radius: For unarmored cables, the minimum bending radius should not be less than 6 times the outer diameter of the cable, and for armored cables, the minimum bending radius should not be less than 8 times the outer diameter of the cable.

四、基本型號及名稱

4、 Basic model and name

1、型號及名稱

1. Model and Name

型號model	名稱name
ATGTNS-FYS	可溶性聚酰亞胺絕緣有機硅混合和彈性體護套防蟻鼠特種電線電纜Soluble polyimide insulated silicone hybrid and elastomer sheathed ant and rodent resistant special wire and cable
ATGTNS22-FYS	可溶性聚酰亞胺絕緣有機硅混合和彈性體護套鋼帶鎧裝防蟻鼠特種電線電纜Soluble polyimide insulated silicone hybrid and elastomer sheathed steel tape armored anti ant and rodent special wire and cable
ATGTNSP-FYS	可溶性聚酰亞胺絕緣有機硅混合和彈性體護套銅網屏蔽防蟻鼠特種電線電纜Soluble polyimide insulated silicone hybrid and elastomer sheathed copper mesh shielding anti ant and rodent special wire and cable
ATGTGS	硅橡膠絕緣有機硅混合和彈性體護套防腐耐寒特種電線電纜Silicone rubber insulation, organic silicon mixture, and elastic sheath for anti-corrosion and cold resistant special wires and cables
ATGTGSP	硅橡膠絕緣有機硅混合和彈性體護套銅網屏蔽防腐耐寒特種電線電纜Silicone rubber insulation, organic silicon mixture, and elastic sheath, copper mesh shielding, anti-corrosion and cold resistant special wire and cable
ATGTGS22	硅橡膠絕緣有機硅混合和彈性體護套鋼帶鎧裝防腐耐寒特種電線電纜Silicone rubber insulation, organic silicon mixture, and elastic sheath, steel tape armor, anti-corrosion and cold resistant special wire and cable
ATGTGSM	硅橡膠絕緣有機硅混合和彈性體護套水密式防腐防水特種電線電纜Silicone rubber insulation, organic silicon mixture, and elastic sheath, waterproof and corrosion-resistant special wire and cable
ATKFTGSMP	硅橡膠絕緣有機硅混合和彈性體護套水密式防腐防水屏蔽特種電線電纜Silicone rubber insulation, organic silicon mixture, and elastic sheath, water tight anti-corrosion, waterproof, and shielded special wire and cable

2、型號說明

Model Description

代號	含義meaning
GT	系列代號Series code
G	硅橡膠silicon rubber
N	可溶性聚酰亞胺soluble polyimide
S	有機硅混合彈性體Organic silicon hybrid elastomer
32	細鋼絲鎧裝Fine steel wire armor
P	銅絲屏蔽Copper wire shielding
M	水密式Water tight type
FYS	防蟻鼠Prevent ants and rodents
22	鋼帶鎧裝 Steel belt armor

五、主要技術指標Specification
1、ATGTNS-FYS電纜的主要技術指標Main technical indicators of cables

序號Serial Number	項目project	性能performance
1	導體電阻Conductor Resistance	按GB12706標準規定According to the GB12706 standard
2	耐電壓試驗Voltage withstand test	3.5KV/5min	不擊穿No breakdown
3	老化前機械性能Mechanical properties before aging	抗拉強度tensile strength	絕緣isolation	最小minimum24.8N/mm2
		護套sheath	最小15.0N/ mm2
	斷裂伸長率elongation at break	絕緣isolation	最小120%
		護套sheath	最小150%
老化前機械性能Mechanical properties before aging	抗拉強度tensile strength	絕緣isolation	200℃±5℃7天最小24.8N/ mm2
		護套sheath	150℃±2℃7天最小15.0N/ mm2
	變化率Change rate	絕緣isolation	200℃±5℃7天最大±20%
		護套	150℃±2℃7天最大±25%
	斷裂伸長率elongation at break	絕緣	200℃±5℃7天最小±120%
		護套	200℃±2℃7天最大±150%
4	低溫沖擊試驗low temperature impact test		-45℃	通過pass through
5	氧指數Oxygen Index	46
