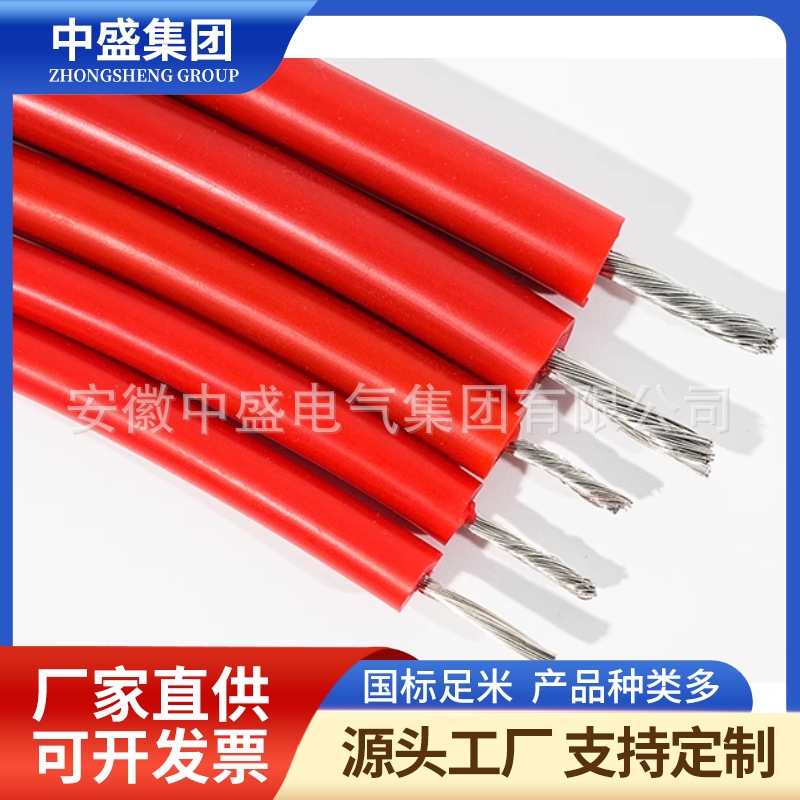

產品名稱：JG 6KV motor lead wire high voltage silicone rubber cable
瀏覽：
添加時間：2025-04-01 16:07:56
推薦度：

介紹：

詳情介紹

Details

一:電機繞組引接軟電纜，本產品適用于電機繞組作引接線用。具有******的柔軟性及耐熱、耐溶劑性。額定電壓8.7/10KV及以下。規格為：0.75mm, 1.0mm, 1.5mm, 2.5mm, 4.0mm, 6.0mm, 10mm, 16mm, 25mm, 35mm, 50mm, 70mm, 95mm, 120mm, 150mm, 185mm, 240mm.

1： The motor winding is connected to a flexible cable, and this product is suitable for use as a connecting wire for motor windings. Has good flexibility, heat resistance, and solvent resistance. Rated voltage of 8.7/10KV and below. Specification: 0.75mm, 1.0mm, 1.5mm, 2.5mm, 4.0mm, 6.0mm, 10mm, 16mm, 25mm, 35mm, 50mm, 70mm, 95mm, 120mm, 150mm, 185mm, 240mm.

二:電機繞組引接軟電纜生產執行標準： JB6213.4-92

2： Production execution standards for flexible cables connected to motor windings: JB6213.4-92

三:電機繞組引接軟電纜使用條件

3： Service conditions for flexible cables connected to motor windings

1 連續運行導體z高溫度為180℃；

The continuous operation of conductor z has a high temperature of 180 ℃;

2 電纜（電線）的額定電壓為500V,1000V；

The rated voltage of 2 cables (wires) is 500V, 1000V;

3 敷設時的允許彎曲半徑應不小于電纜（電線）外徑的4倍。

The allowable bending radius during laying should not be less than 4 times the outer diameter of the cable (wire).

四:電機繞組引接軟電纜

4： Motor winding leads to flexible cable

JG 銅芯硅橡膠絕緣耐高溫電機繞組引接軟電纜（電線）

JG copper core silicone rubber insulated high-temperature resistant motor winding connection flexible cable (wire)

JHXG 鍍錫銅芯硅橡膠絕緣耐高溫電機繞組引級軟電纜（電線）

JHXG Tin Plated Copper Core Silicone Rubber Insulated High Temperature Resistant Motor Winding Lead Flexible Cable (Wire)

ZR-JG 銅芯阻燃硅橡膠絕緣耐高溫電機繞組引接軟電纜（電線）

ZR-JG copper core flame-retardant silicone rubber insulated high-temperature resistant motor winding connection flexible cable (wire)

ZR-JHXG 鍍錫銅芯阻燃硅橡膠絕緣耐高溫電機繞組引接軟電纜（電線）

ZR-JHXG Tin Plated Copper Core Flame Retardant Silicone Rubber Insulated High Temperature Motor Winding Connection Flexible Cable (Wire)

JEM 銅芯乙丙絕緣引接電纜一電機繞組引接軟電纜（電線）

JEM copper core ethylene propylene insulated lead cable - motor winding lead flexible cable (wire)

JF 銅芯硅橡膠絕緣耐高溫電機繞組引接軟電纜（電線）

JF copper core silicone rubber insulated high-temperature resistant motor winding connection flexible cable (wire)

JV 銅芯銅芯聚氯乙烯絕緣電機繞組引接電纜（電線）

JV Copper Core PVC Insulated Motor Winding Connection Cable (Wire)

JBF 銅芯丁月青聚氯乙烯復合物絕緣電機繞組引接電纜電機繞組引接軟電纜（電線）

JBF copper core Ding Yueqing polyvinyl chloride composite insulated motor winding connection cable motor winding connection flexible cable (wire)

JXN 銅芯橡皮絕緣丁月青護套電機繞組引接

JXN copper core rubber insulated Ding Yueqing sheathed motor winding connection

JXF 銅芯橡皮絕緣氯丁護套電機繞組引接軟電纜（電線）

JXF copper core rubber insulated chloroprene sheathed motor winding connection flexible cable (wire)

電線適用于交流額定電壓6000V、10000V及以下絕緣電機、電器用引接線。電線的連續運行

The wire is suitable for insulated motors and electrical appliances with rated AC voltage of 6000V, 10000V and below. Continuous operation of wires

導體溫度：-100～+200℃

Conductor temperature: -100 to+200 ℃

型號model	導體conductor		絕緣 isolation						參考重量Reference weight
	標稱截面Nominal cross-section	導體結構Conductor structure	標稱厚度Nominal thickness		標稱外徑Nominal outer diameter		z大外徑Maximum outer diameter		參考重量Reference weight
	標稱截面Nominal cross-section	導體結構Conductor structure	6KV	10KV	6KV	10KV	6KV	10KV	6KV	10KV
JGG	0.75	24/0.20	2.3	2.8	5.8	6.8	6.6	7.8	37.4	49.5
	1.0	32/0.20	2.3	2.8	5.9	6.9	6.8	8.0	40.2	52.6
	1.5	30/0.25	2.5	3.0	6.6	7.6	7.6	8.7	52	65.8
	2	41/0.25	2.5	3.0	6.9	7.9	7.9	9.0	59.5	73.7
	2.5	49/0.25	2.8	3.2	7.6	8.4	8.8	9.6	72.8	85
	4	56/0.30	2.8	3.2	8.2	9.0	9.4	10.3	91	104
	6	84/030	3.0	3.4	9.6	10.4	11	12	127.6	143
	10	84/0.40	3.0	3.4	10.6	11.4	12.2	13.1	171.6	188.5
	16	126/0.40	3.2	3.6	12.1	12.9	13.9	14.8	244	263.8
	25	196/0.40	3.2	3.6	13.5	14.3	15.5	16.4	342	364
	35	276/0.40	3.4	3.8	15.3	16.1	17.6	18.5	443	549
	50	396/0.40	3.4	3.8	17.1	17.9	19.7	20.6	605	632
	70	360/0.50	3.6	4.0	19.6	20.4	22.5	23.4	808	838
	95	475/0.50	3.6	4.0	21.7	22.5	25	25.9	1065	1100
	120	608/0.50	4.0	5.0	24	26	27.6	30	1328	1423
	150	756/0.50	4.2	5.2	27	29	31	33.3	1675	1782
	185	925/0.50	4.5	5.5	29.5	31.5	33.9	36.2	2040	2155
